Introduction

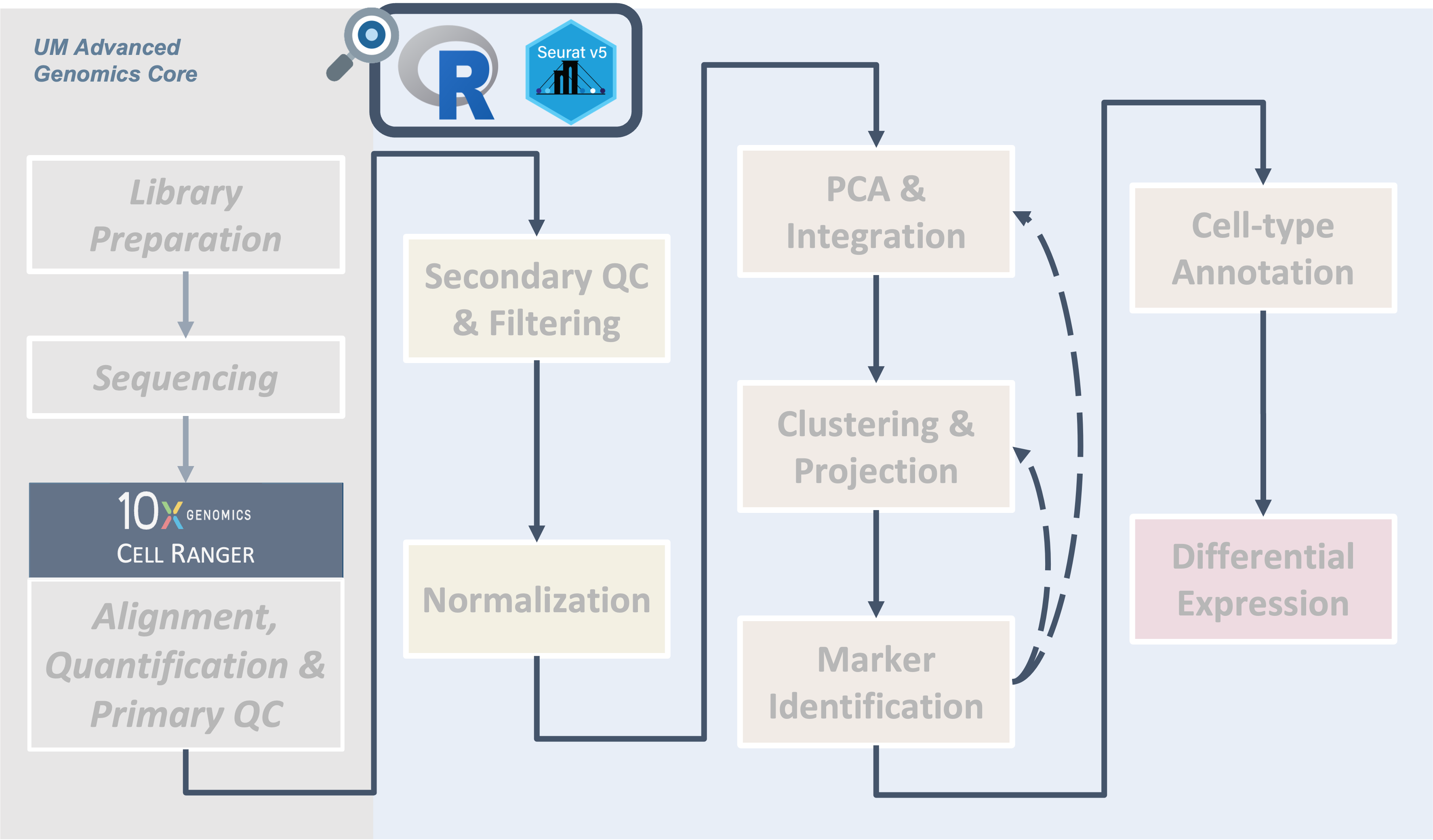

Cell Ranger outputs can be read into R via the triple of files directly, or via a memory saving route with the BPCells package. We provide code for both routes in this section.


One of the goals of this workshop is to work through an example from start to end, and to highlight some of the decision points and rationales behind the decisions. The first step of any single-cell project will be to get the data into R for analysis.

Objectives

  • Orient on RStudio.
  • Create an RStudio project for analysis.
  • Create directory structure for analysis.
  • Learn how to read Cell Ranger data into Seurat.
  • Introduce the Seurat object, and how to access parts of it.

Orienting on RStudio

To get started, let’s log in to the workshop server by going here: http://bfx-workshop02.med.umich.edu

The login page for the server looks like:

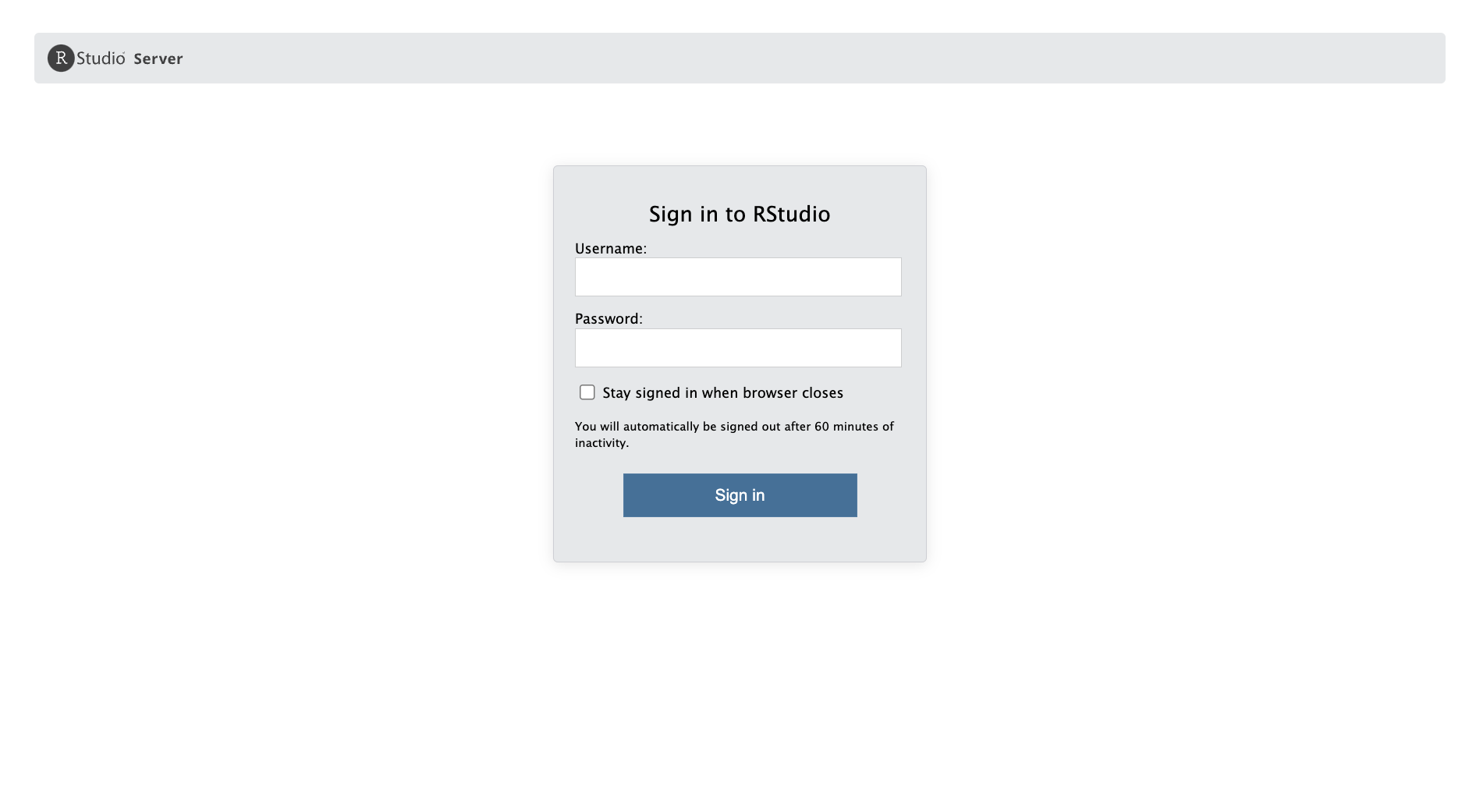

rstudio login screen

Enter your user credentials and click Sign In. The RStudio interface should load and look like:

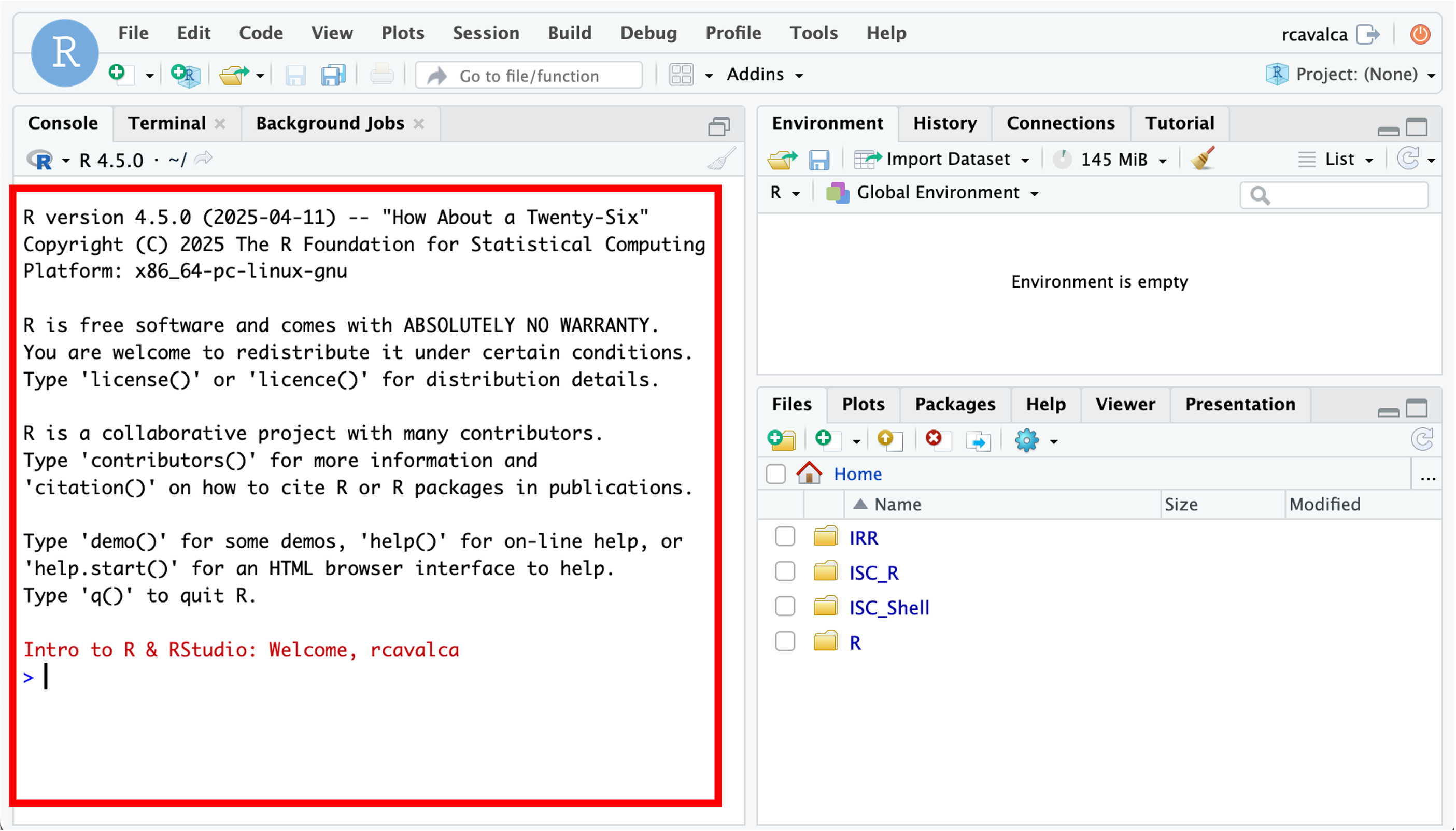

rstudio default session

Checkpoint

RStudio is an integrated development environment where you can write, execute, and see the results of your code. The interface is arranged in different panes:

  • The Console pane along the left where you can enter commands and execute them.
  • The Environment pane in the upper right shows any variables you have created, along with their values.
  • The pane in the lower right has a few functions:
    • The Files tab let’s you navigate the file system.
    • The Plots tab displays any plots from code run in the Console.
    • The Help tab displays the documentation of functions.

Commands in the Console

Commands can be run in the Console directly. Press Enter to execute them:

> 2+2
[1] 4

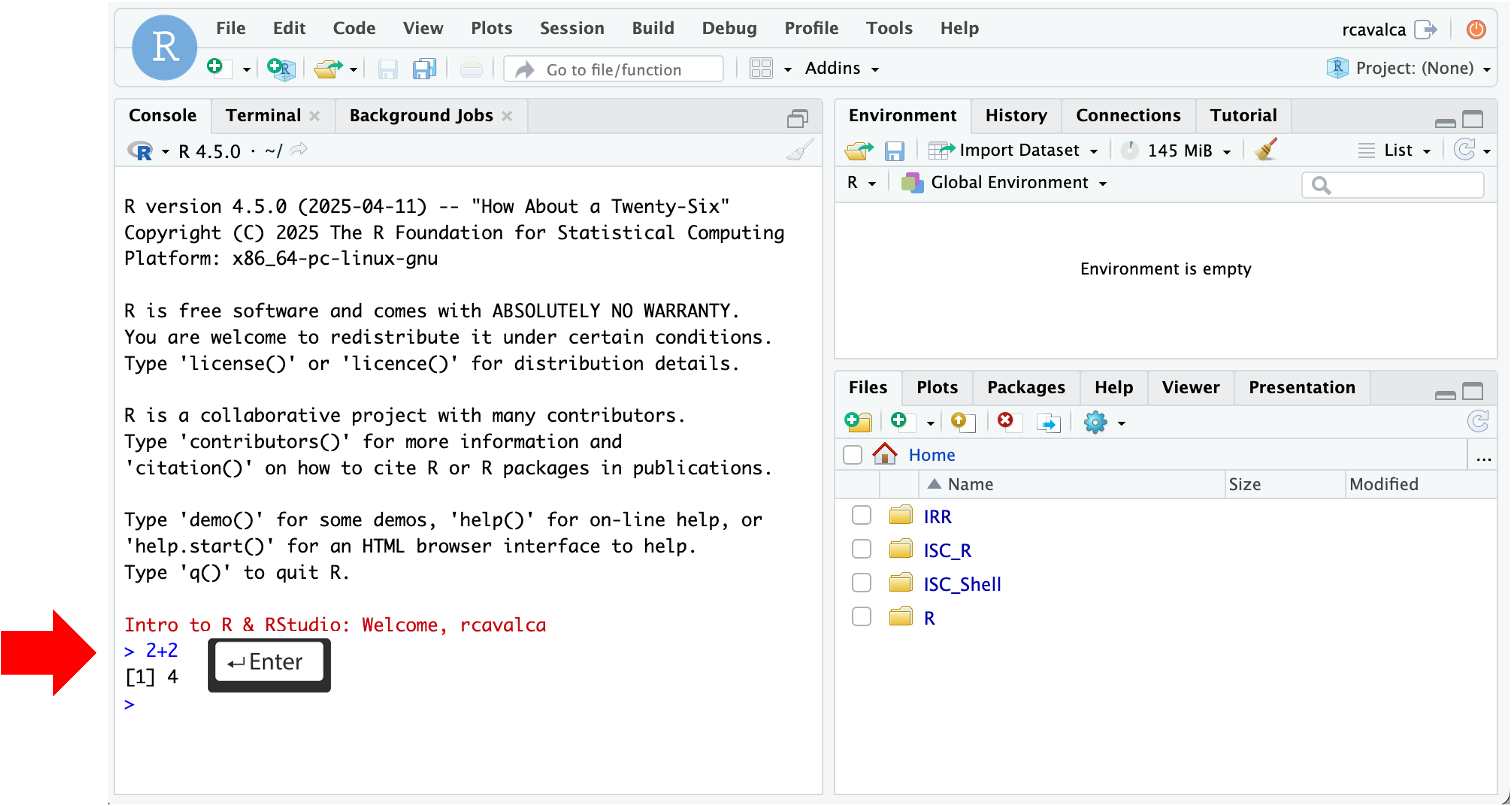

rstudio console execution

Checkpoint

Commands in the Script

Commands can also be run in a script. Some beenefits to using a script rather than relying on the Console pane:

  • Scripts are files that can be shared.
  • Scripts record the steps taken to analyze the data.
  • Scripts can be re-run, allowing for reproducibility.

When first opening RStudio, a script file is not automatically opened. We’ll create our script file by clicking on the icon in the upper-left of the interface (a blank piece of paper with a + sign), and selecting R Script.

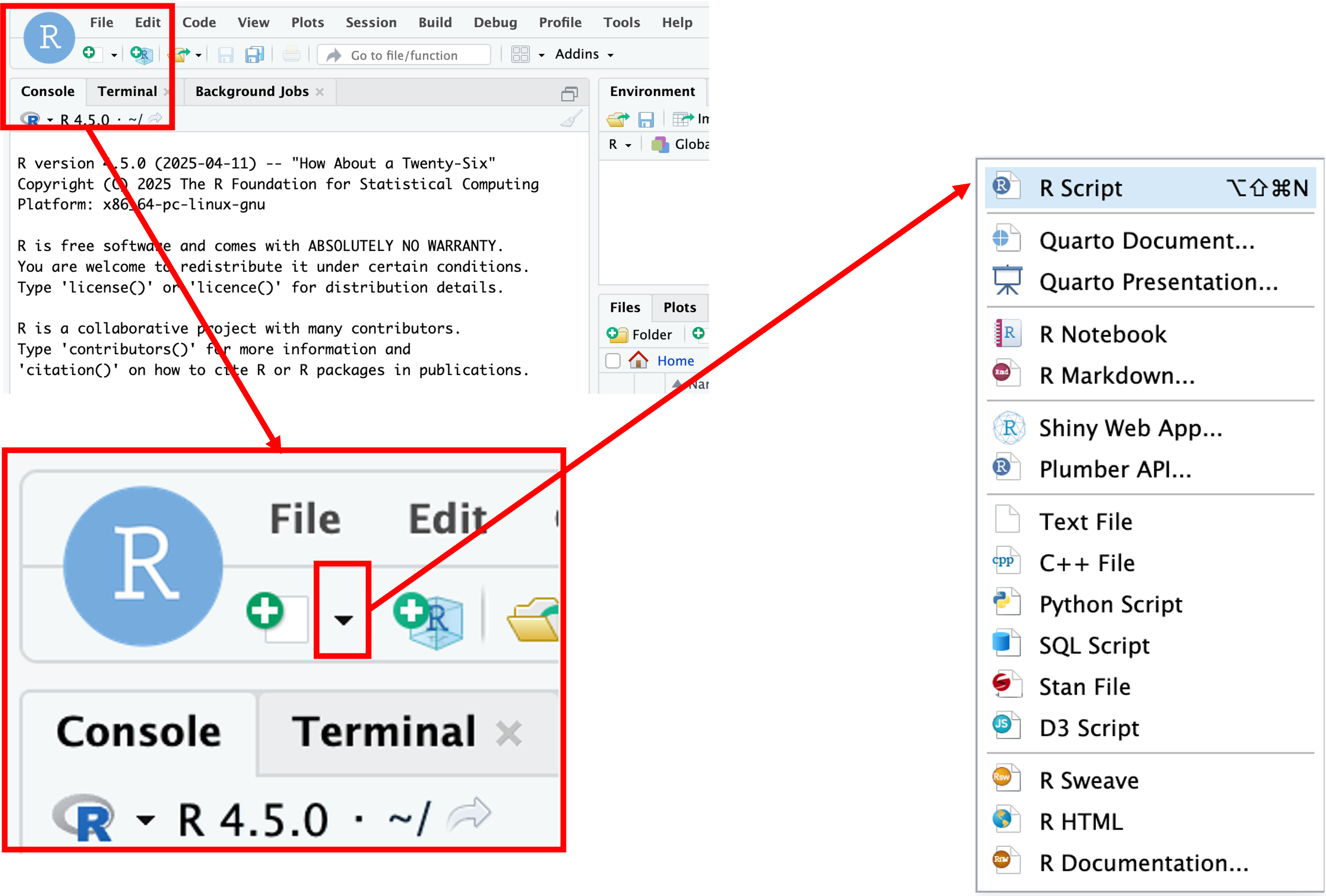

rstudio create script

The new pane that opens is the Source pane:

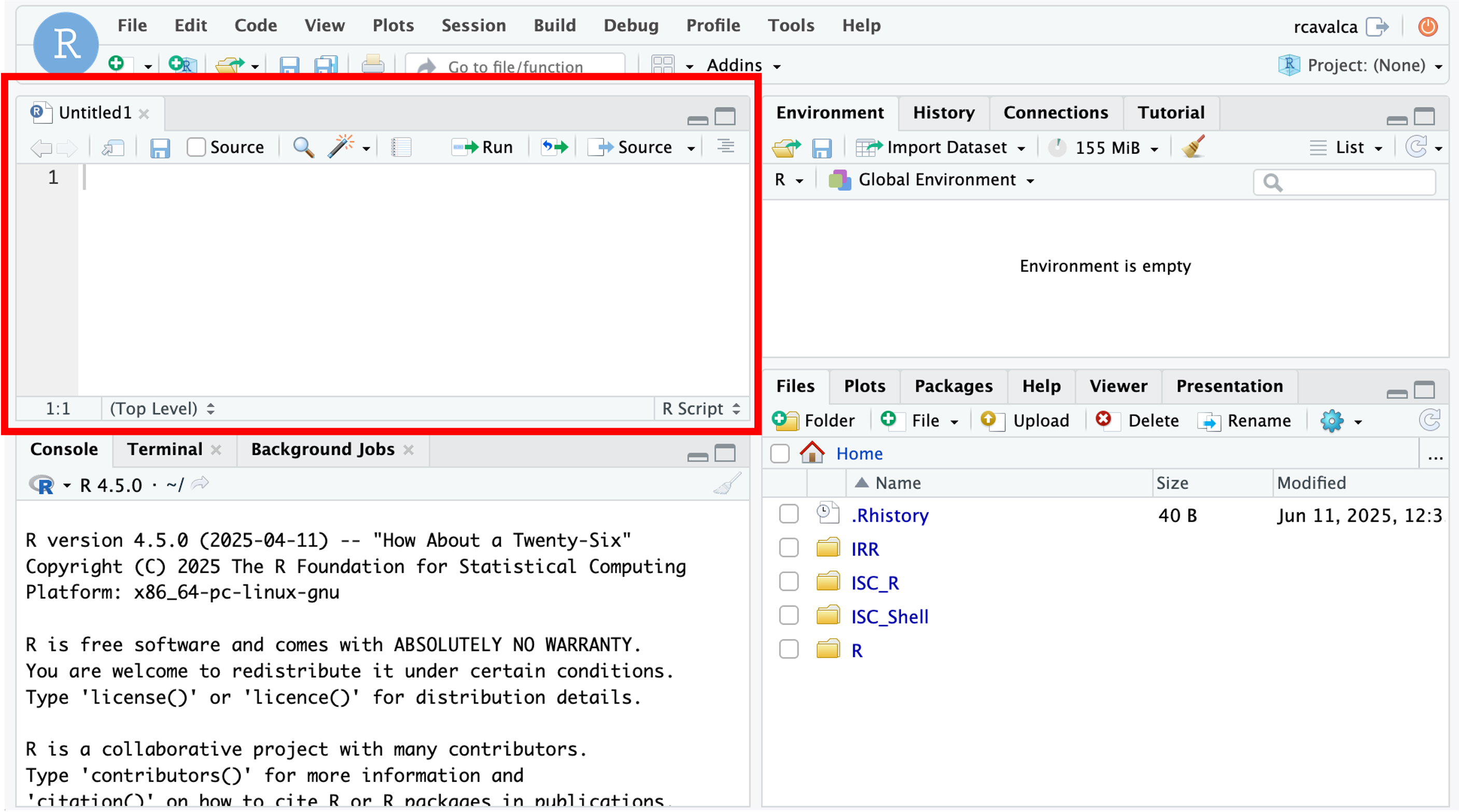

rstudio script pane

You can think of this as a simple text editor. In the Script pane, enter:

3+2

Notice that if we press Enter in the Source pane, we get a new line instead of running the code. In order to execute the code, we press Ctrl + Enter either on the single line we want to run, or on a highlighted block of code. We then see that code executed, along with its result in in the Console pane.

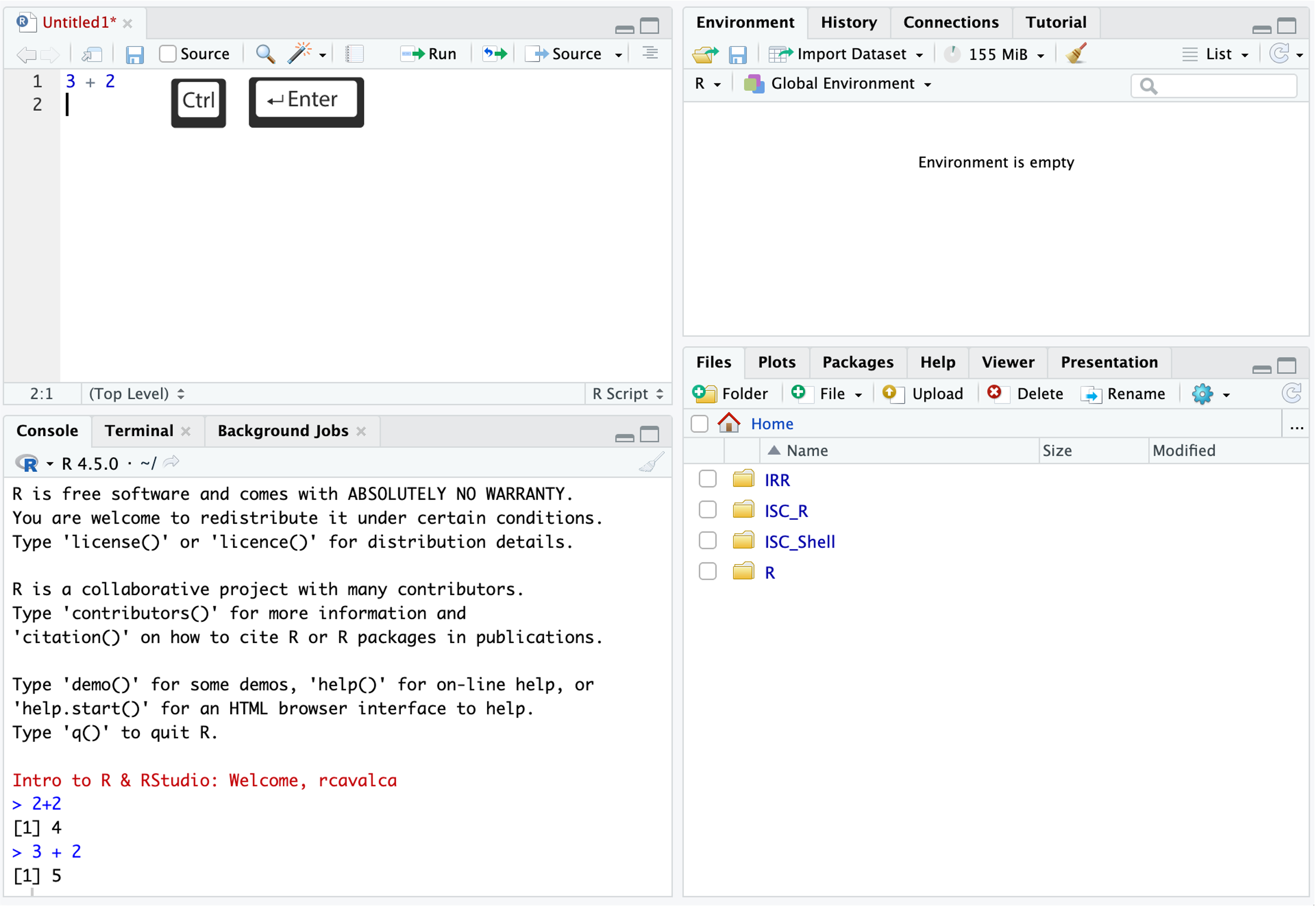

rstudio script execution

Summary: Console vs Script

Here are some of the key differences between the Console and Script panes in RStudio:

Console Script
Ephemeral code Preserved code
Run with Enter Run with Ctrl + Enter
Hard to share Easy to share

Configuring RStudio

All of the panes in RStudio have configuration options. For example, you can minimize/maximize a pane or resize panes by dragging the borders. The most important customization options for pane layout are in the View menu. Other options such as font sizes, colors/themes, and more are in the Tools menu under Global Options.

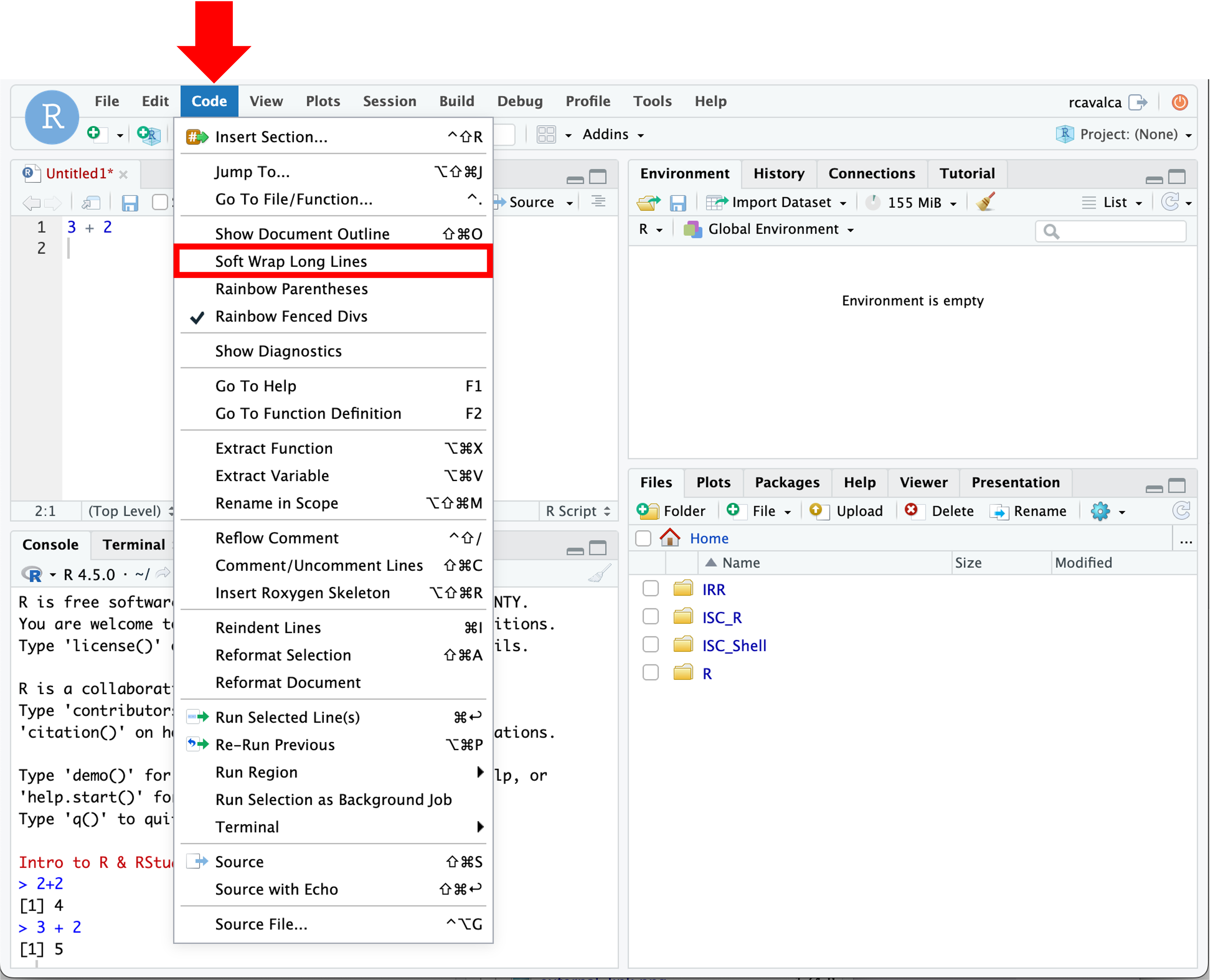

We can enable soft-wrapping of code by selecting Code and then Soft Wrap Long Lines.

rstudio code execution

Workshop flow

To accomodate learning styles and to keep us moving along, we’ll provide code in three different ways, and you can get that code into RStudio in corresponding ways:

Source of Code Execution of Code
Zoom screen share Type the code yourself.
Slack Copy and paste code into RStudio.
Website Use code block copy button and paste into RStudio.

Questions?

Setting up

Before we begin, the folder structure of a working directory / project organizes all the relevant files. Typically we make directories for the following types of files:

  • Raw data, called data, input, etc,
  • Results, often results or output with subfolders for tables, figures, and rdata, and
  • Scripts, often scripts.

We’ve already provided the raw data in the data/ folder, but you’d otherwise want to move the starting, unaltered, data into this folder.

Creating directory stucture

Before we start creating directories, let’s make sure we’re in the right location. To print the current working directory:

# =========================================================================
# Getting Started with Seurat
# =========================================================================

# -------------------------------------------------------------------------
# Get current working directory
getwd()
[1] "/home/workshop/damki/workshop-intro-single-cell/source"

This means that any references to files loaded or files saved is with respect to this location. This can simplify our code a bit by allowing us to use relative paths rather than full paths. Let’s set our working directory to the ISC folder in our respective home directories.

# -------------------------------------------------------------------------
# Set current working directory
setwd('~/ISC_R')

Now that we’re sure of our working directory, let’s create some folders for our analysis scripts and results thereof.

# -------------------------------------------------------------------------
# Create directory structure

dir.create('scripts', recursive = TRUE, showWarnings = FALSE)
dir.create('results/figures', recursive = TRUE, showWarnings = FALSE)
dir.create('results/tables', recursive = TRUE, showWarnings = FALSE)
dir.create('results/rdata', recursive = TRUE, showWarnings = FALSE)

Saving scripts

Let’s save our currently open script in the scripts/ folder as ISC_day1.R by clicking File and then Save.

Checkpoint

Loading libraries

We begin our analysis script by loading the libraries we expect to use. It’s generally good practice to include all library() calls at the top of a script for visibility.

# -------------------------------------------------------------------------
# Load libraries
library(Seurat)
library(BPCells)
library(tidyverse)

options(future.globals.maxSize = 1e9)

The libraries that we are loading are:

  • The Seurat library, developed by the Satija lab, which will provide the essential functions used in our single-cell analysis. The Seurat documentation is extensive and indispensible.
  • The BPCells library, developed by Benjamin Parks, is a recent package with the primary goal of efficiently storing single-cell data to reduce its memory footprint. The BPCells documentation includes many useful tutorials.
  • The tidyverse library, developed by Posit, is an essential package for data manipulation and plotting. The tidyverse documentation is essential for getting a handle on the array of functions in the many packages contained therein.

Read in data

The inputs/10x_cellranger_filtered_triples/ folder is closer to what AGC would generate with Cell Ranger, where each sample has a folder, and within that folder there are three files:

  • barcodes.tsv.gz
  • features.tsv.gz
  • matrix.mtx.gz

Note, these files are filtered matrices, AGC will touch on filtered and unfiltered Cell Ranger outputs.

Read10X

The Read10X() function will read in the triples organized within sample folders:

# -------------------------------------------------------------------------
# To load data from 10X Cell Ranger

# Collect the input directories
#   Each sample dir contains barcodes.tsv.gz, features.tsv.gz, matrix.mtx.gz.
#   Naming the sample_dirs vector makes Seurat name the
#     samples in the corresponding manner, which is nice for us.
sample_dirs = list(
  HODay0replicate1  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay0replicate1",
  HODay0replicate2  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay0replicate2",
  HODay0replicate3  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay0replicate3",
  HODay0replicate4  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay0replicate4",
  HODay7replicate1  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay7replicate1",
  HODay7replicate2  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay7replicate2",
  HODay7replicate3  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay7replicate3",
  HODay7replicate4  = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay7replicate4",
  HODay21replicate1 = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay21replicate1",
  HODay21replicate2 = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay21replicate2",
  HODay21replicate3 = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay21replicate3",
  HODay21replicate4 = "~/ISC_R/inputs/10x_cellranger_filtered_triples/count_run_HODay21replicate4")

# Create the expression matrix from sample dirs
#   Read10X needs a *vector* instead of a *list*, so we use *unlist* to convert
geo_mat = Read10X(data.dir = unlist(sample_dirs))

Write BPCells

We could create a Seurat object with CreateSeuratObject(counts = geo_mat), but we will first output geo_mat using the BPCells package to save memory:

# -------------------------------------------------------------------------
# Build BPCells input dir
# To use BPCells (to save some memory), you can transform
# the expression matrix data structure above into BPCells files.
# BPCells uses these files for processing, but you typically never look at
# their contents directly
write_matrix_dir(mat = geo_mat, dir = '~/ISC_R/bpcells', overwrite = TRUE)
Warning: Matrix compression performs poorly with non-integers.
• Consider calling convert_matrix_type if a compressed integer matrix is intended.
This message is displayed once every 8 hours.
32285 x 35269 IterableMatrix object with class MatrixDir

Row names: Xkr4, Gm1992 ... AC149090.1
Col names: HODay0replicate1_AAACCTGAGAGAACAG-1, HODay0replicate1_AAACCTGGTCATGCAT-1 ... HODay21replicate4_TTTGTCACAGGGAGAG-1

Data type: double
Storage order: column major

Queued Operations:
1. Load compressed matrix from directory /home/workshop/damki/ISC_R/bpcells
# -------------------------------------------------------------------------
# Cleanup
# Since we'll now be reading in from BPCells files, we will remove geo_mat
# from the environment and then prompt RStudio to run a "garbage collection"
# to free up unused memory
rm(geo_mat)
gc()
           used  (Mb) gc trigger   (Mb)  max used   (Mb)
Ncells  6300819 336.6   12129297  647.8   8022064  428.5
Vcells 11758118  89.8  564619816 4307.8 673035795 5134.9

Read BPCells

Let’s read the BPCells files in, and note that the geo_mat object takes up less memory than when we created it with Read10X():

# -------------------------------------------------------------------------
# Create expression matrix and Seurat object from BPCells files
geo_mat = open_matrix_dir(dir = '~/ISC_R/bpcells')

Create a Seurat object

The expression matrix is the precursor to creating the Seurat object upon which all our analysis will be done. To create the Seurat object:

# -------------------------------------------------------------------------
# Create seurat object
geo_so = CreateSeuratObject(counts = geo_mat, min.cells = 1, min.features = 50)
geo_so
An object of class Seurat
26489 features across 35216 samples within 1 assay
Active assay: RNA (26489 features, 0 variable features)
 1 layer present: counts

We have specified some parameters to remove genes and cells which do not contain very much information. Specifically a gene is removed if it is expressed in 1 or fewer cells, and a cell is removed if it contains reads for 50 or fewer genes. In the context of this workshop, this helps us minimize memory usage.

molecule_info.h5 as an alternative input to Seurat

H5 (aka HDF5) is an alternative file format

Some programs (like Seurat) need only the barcodes, features, and matrix (counts) and those data are conveniently provided as three separate files for each sample. Other programs (like Cell Ranger) need to store more information (e.g.  probe info about certain library preps or the chip or channel that cell ran on). Instead of adding more files to complement the three base files above, 10x provides a single binary file, molecule_info.h5, which contains all information for all molecules. (Strictly only the molecules with valid barcode/UMI assigned to a gene.)

  • molecule_info.h5 is a single file, but with really acts like basket of related structures (think tables) for a single sample.
  • The “.h5” extension stands for HDF5, a broadly adopted, platform agnostic, scalable, high-performance file format for storing complex data.
  • You can view the data within the .h5 file with special tools like HDF5View or h5dump. Here is an excerpt of the structures inside that file:
molecule_info.h5
    ├─ barcodes [HDF5 group]
    ├─ count
    ├─ features [HDF5 group]
    ├─ gem_group
    ├─ library_info
    ├─ metrics_json
    ├─ probes [HDF5 group]
    ├─ ...
    └─ umi

You can see the first structures above are barcodes, features, and counts. So if you have the hdf5 libraries installed, you can use the .h5 as input to Seurat like so:

# ==========================================================================
### DO NOT RUN ###
# To load data from raw .h5 file
### DO NOT RUN ###

HODay0replicate1 = "~/ISC_Shell/cellranger_outputs/count_run_HODay0replicate1/outs/molecule_info.h5"
get_mat = Read10X_h5(filename = HODay0replicate1)
geo_so = CreateSeuratObject(counts = geo_mat, min.cells = 1, min.features = 50)

If you want to load multiple samples from .h5 files, see the function Read10X_h5_Multi_Directory in the scCustomize R library.

FYI

  • Be aware, using HDF5 files from R support requires the hdf5 library which entails a few more steps to install than a typical library. Brew a nice cup of (decaf) tea and review how to install hdf5.
  • See the Seurat function Read10X.
  • See BPCells docs for details on loading from h5 to a BPCells directory.
  • 10x Genomics details the full contents of molecule_info.h5.
  • Checkout the HDF5 reference docs for more information about the HDF5 format.


Structure of a Seurat object

The Seurat object is a complex data type, so let’s get a birds eye view with an image from this tutorial on single-cell analysis.

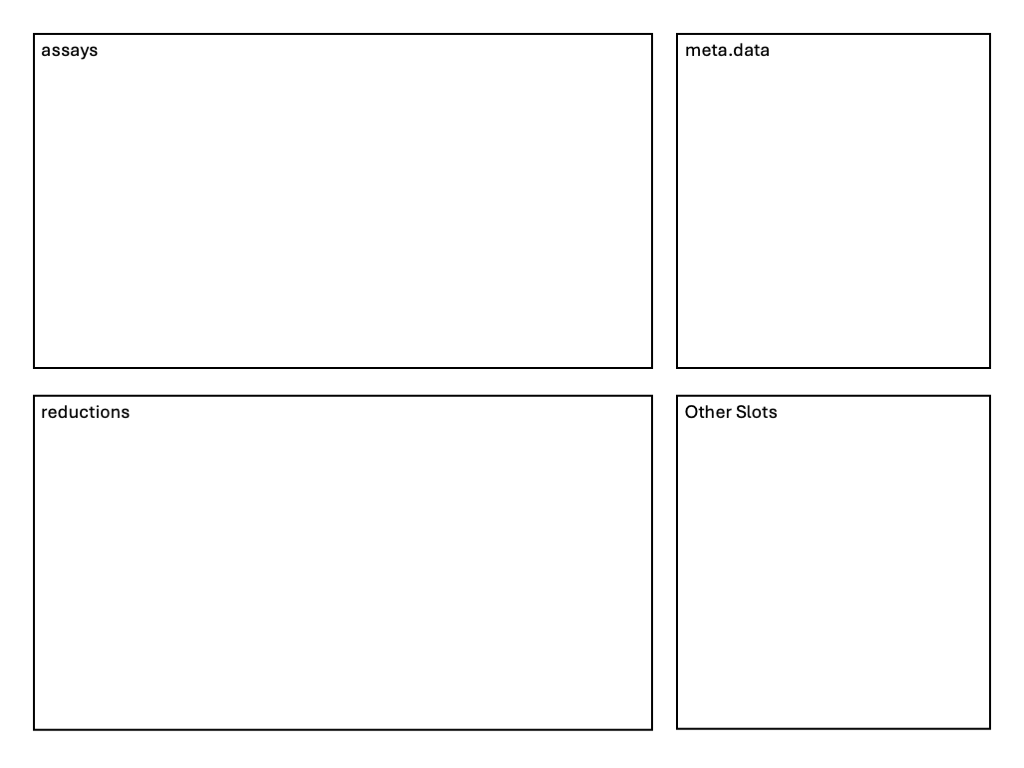

Image: Schematic of Seurat object.
Image: Schematic of Seurat object.

The three main “slots” in the object are:

  1. The assays slot stores the expression data as Assay objects.
  2. The meta.data slot which stores cell-level information, including technical and phenotypic data.
  3. The reductions slot stores the results of dimension reduction applied to the assays.

There are other slots which store information that becomes relevant as we progress through the analysis. We will highlight the other slots as they come up.

After reading the data in and creating the Seurat object above, we can imagine the following schematic representing our object:

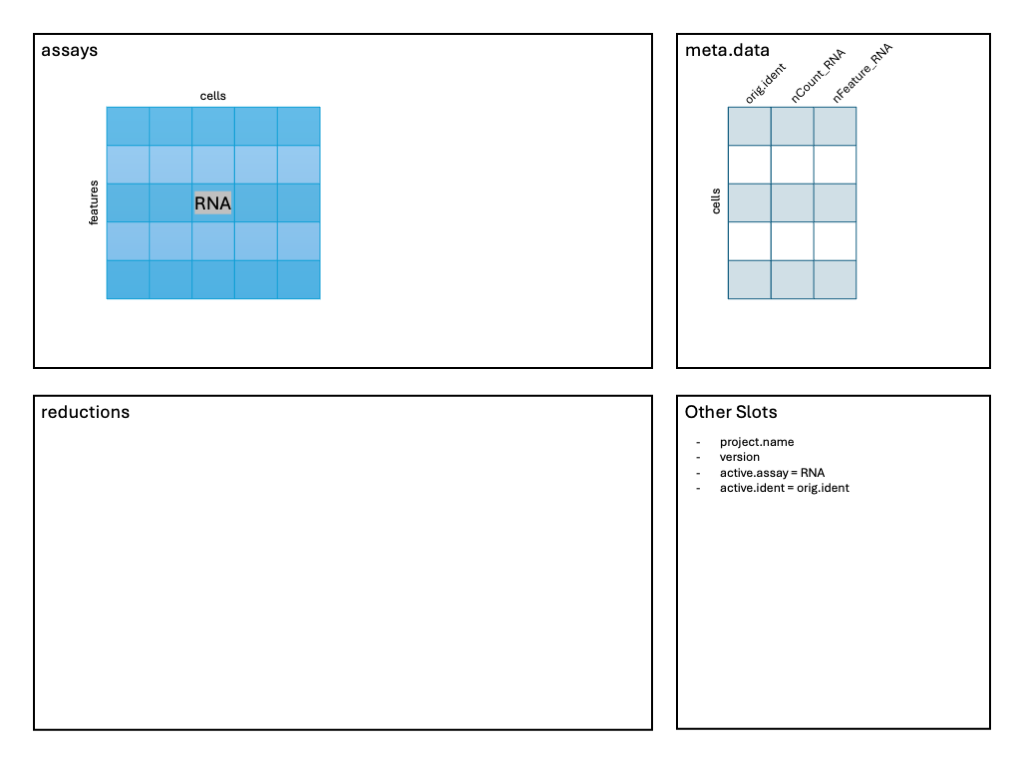

Image: Schematic after creating the Seurat object.
Image: Schematic after creating the Seurat object.

Note the RNA assay contains a count layer consisting of a raw count matrix where the rows are genes (features, more generically), and the columns are all cells across all samples. Note also the presence of a meta.data table giving information about each cell. We’ll pay close attention to this as we proceed. The other slots include information about the active.assay and active.ident which tell Seurat which expression data to use and how the cells are to be identified.

Accessing parts of the object

The only slot of the Seurat object that we’ll typically access or modify by hand–that is, without a function from the Seurat package–is the meta.data object. In R, slots are accessed with the @ symbol, as in:

# -------------------------------------------------------------------------
# Examine Seurat object
head(geo_so@meta.data)
                                          orig.ident nCount_RNA nFeature_RNA
HODay0replicate1_AAACCTGAGAGAACAG-1 HODay0replicate1      10234         3226
HODay0replicate1_AAACCTGGTCATGCAT-1 HODay0replicate1       3158         1499
HODay0replicate1_AAACCTGTCAGAGCTT-1 HODay0replicate1      13464         4102
HODay0replicate1_AAACGGGAGAGACTTA-1 HODay0replicate1        577          346
HODay0replicate1_AAACGGGAGGCCCGTT-1 HODay0replicate1       1189          629
HODay0replicate1_AAACGGGCAACTGGCC-1 HODay0replicate1       7726         2602

Here, each row is a cell, and each column is information about that cell. The rows of the table are named according to the uniquely identifiable name for the cell. In this case, the day and replicate, as well as the barcode for that cell. As we continue the workshop, we will check in on the meta.data slot and observe changes we want to make, and that other functions will make. We’ll also observe the other assays and layers and note their changes.

Save our progress

Let’s Save our progress as an RDS file with saveRDS(); this allows us to have a copy of the object that we can read back into our session with the readRDS() commmand. Periodically we will be saving our Seurat object so that we can have a version of it at different steps of the analysis. These will also help us get untangled if we get into an odd state.

# -------------------------------------------------------------------------
# Save the Seurat object
saveRDS(geo_so, file = 'results/rdata/geo_so_unfiltered.rds')

Now that the state of our analysis is saved on disk, we’ll demonstrate how to power down the RStudio session, restart the session, and re-load the data we just saved.

  1. To power down the session, click the orange power button in the upper right corner of the RStudio window. Note: There is no confirmation dialogue, the session will simply end.
  2. Click the “Start New Session” button to restart the RStudio session.
  3. Re-load the geo_so object with:
# -------------------------------------------------------------------------
# Load libraries
library(Seurat)
library(BPCells)
library(tidyverse)
options(future.globals.maxSize = 1e9)

setwd("~/ISC_R/")

# -------------------------------------------------------------------------
# Load the Seurat object
geo_so = readRDS('results/rdata/geo_so_unfiltered.rds')



Pro-tip: RStudio, Seurat, and Memory

  • R and RStudio are designed to grab computer memory (RAM) when necessary and release that memory when it’s no longer needed. R does this with a fancy computer science technique called garbage collection.

  • The R garbage collector is very good for small objects and simple analyses, but complex single-cell analysis can overwhelm it. So don’t rely on R/RStudio’s built in garbage collection and session management for single-cell analysis. Instead, do the following:

  1. Save intermediate versions of the Seurat object as you go along using saveRDS(). This gives you “savepoints” so if you need to backtrack, you don’t have to go back to the beginning.
  2. Save ggplots into image files as you go along. Periodically clear ggplot objects from the R environment.
  3. At the end of each day, wherever you are in the analysis, explicitly save the Seurat object and “power down” your session.
  4. The next day, you can load the Seruat object using readRDS().

This simple pattern will make your code more reproducible and your RStudio session more reliable.

Summary

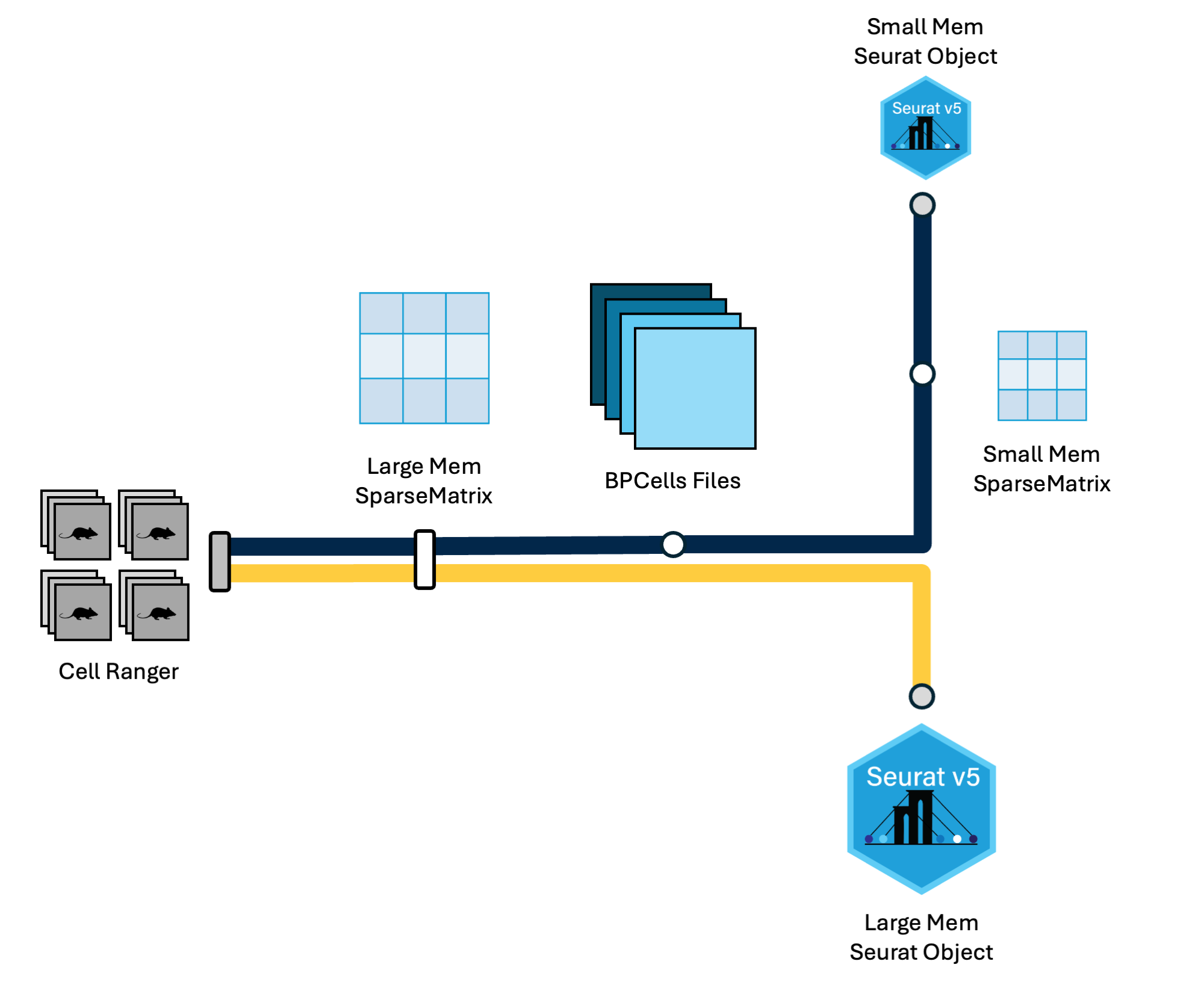

Cell Ranger outputs can be read into R via the triple of files directly, or via a memory saving route with the BPCells package. We provide code for both routes in this section.


In this section we:

  • Created an RStudio project for analysis.
  • Created the directory structure for analysis.
  • Learned how to read 10X data into Seurat.
  • Introduced the Seurat object, and how to access parts of it.
  • Learned some tips on managing memory.
  • Learned to save our work and also to stop and restart the RStudio session.

References:

Acknowledgements These materials have been adapted and extended from materials listed above. These are open access materials distributed under the terms of the Creative Commons Attribution license (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.



Previous lesson Top of this lesson Next lesson
