Introduction

Starting with filtered, normalized data [gene x cell] for all samples - principal component analysis (PCA) can be used to reduce the dimensionality while still representing the overall gene expression patterns for each cell

After filtering and normalization, our next goal is to cluster the cells according to their expression profiles. However, even after filtering, we expect to still have several thousand cells assayed with approximately 21,000 genes measured per cell. This means that we are working very “high-dimensional” data that presents some challenges.

Objectives

Understand why PCA is used prior to integration and clustering for single-cell data
Use the RunPCA() function to generate principal components for our data
Use IntegrateLayers() to integrate our sample data prior to clustering

Similar to the previous sections, while we will be showing one example of executing these steps and you may see only a single approach reported in a paper, testing multiple methods or parameter options might be necessary.

What is PCA?

The high dimensionality of single-cell data present two major challenges for analysis:

The scale makes analysis steps costly and slow
The sparseness means there is likely uninteresting variation that should be excluded

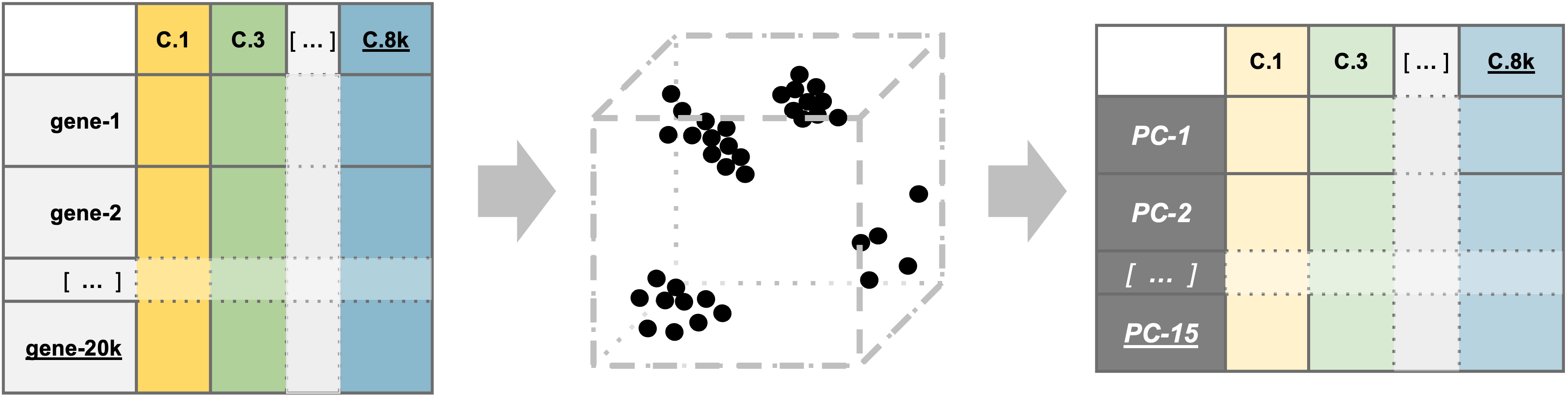

In practical terms, Principal component analysis (PCA) creates a simpler, more concise version of data while preserving the same “story”. For example, a football game is exciting to attend in person but can take hours, especially considering the time spent traveling and waiting. Conversely, watching a highlight reel of the same game might not give you the full experience, but by seeing the key plays conveys what happened in the game in a fraction of the time.

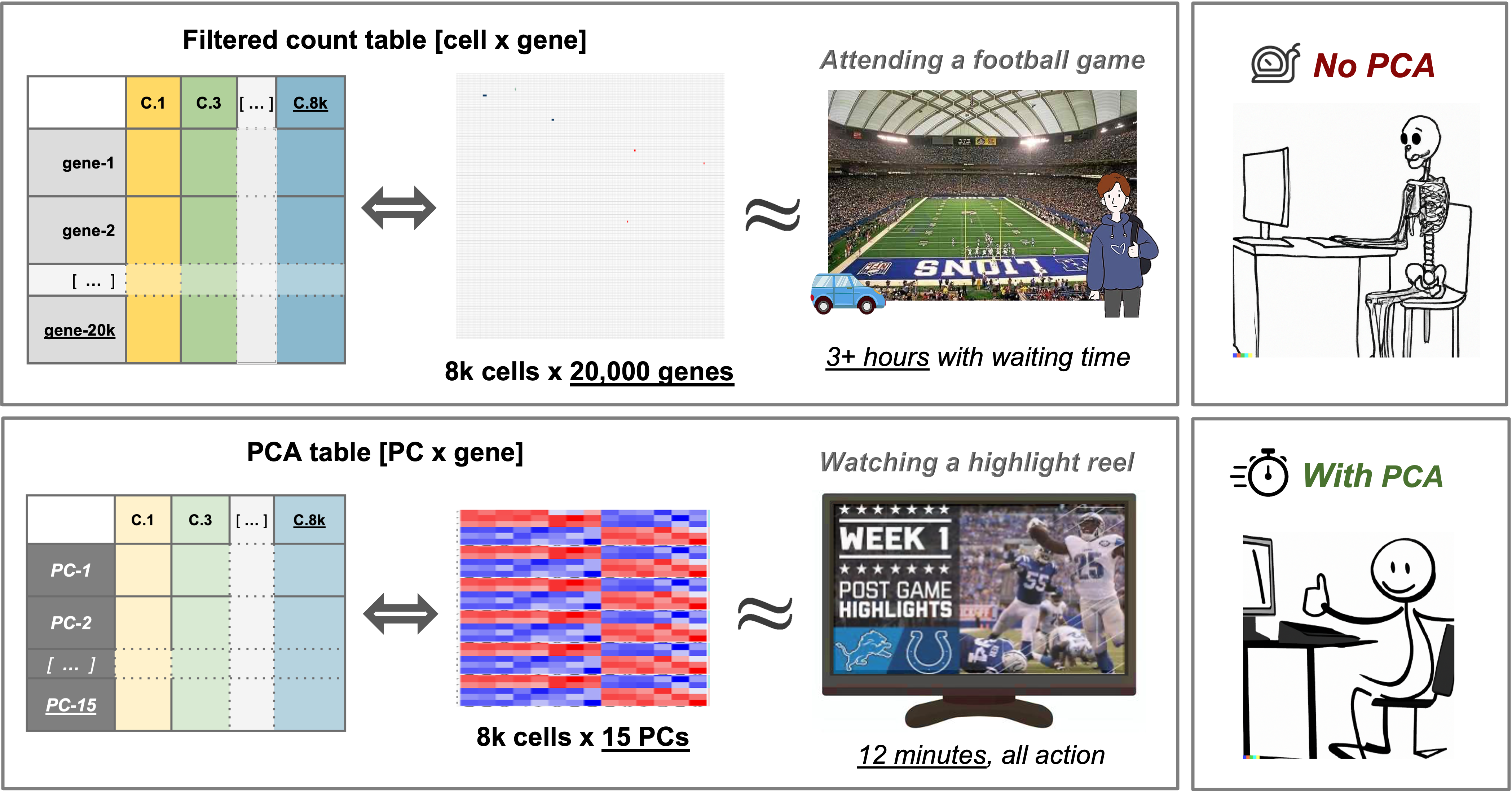

Similarly to a highlight reel, running PCA allows us to select PCs that represent correlated gene expression to reduce the size and complexity of the data while still capturing the overall expression patterns and also reducing computation time.

PCA example

To understand how PCA works for single-cell data, we can consider a smaller dataset measuring the expression of four genes measured in just two cells and plot the expression of those four genes, with data from one cell plotted on the x-axis and the second cell plotted on the y-axis.

A simple PCA example (from HBC)

If we wanted to represent the most variation across the data, we would draw a diagonal line between gene B and gene C - this would represent the first principal component (PC). However, this line doesn’t capture all the variance in this data as the genes also vary above and below the line, so we could draw another line (at a right angle to the first) representing the second most variation in the data - which would represent the second PC.

PCA gene loadings (from HBC)

We won’t illustrate the process of generating all possible PCs, but running PCA on our data will result in a score for each cell for each PC and each gene will have a weight or loading for a given PC. By definition, the PCs capture the greatest factors of heterogeneity in decreasing order in the data set (source).

Why PCA is useful for single-cell data

In contrast to bulk RNA-seq, where the majority of the variance is usually explained by the first and second PC, for single-cell data we expect that many more PCs are contributing to the overall variance.

Sparsity in single-cell data

In addition to being “high-dimensional”, we expect the data to be both “sparse” and “noisy”. Sparse in the sense that many genes will either not be expressed or not measured in many of the cells and have zero values. Noisy due to biological variability and technical variability due to the practical limitations of both capture and sequencing depth (source).

Note on zero “inflation” of single-cell data

Single-cell data is sometimes described as “zero inflated”, however work by Svensson has challenged that characterization and argued that the higher number of zeros observed in scRNA-seq compared to bulk RNA-seq is more likely due to biological variance and lower sequencing saturation than technical artifacts. Work by Choi et al. (2020) support that zeros in single-cell data are due to biology but Jiang et al. (2022) delves more into the “controversy” zero inflation, including common approaches for handling zeros and the downstream impacts.

For sparse, high-dimensional, biological data, we expect many genes to have correlated expression as they would be impacted by the same biological process while other genes to have either low (more noisy) or have similar expression and therefore are not as important for identifying cell-type/subtypes. So we can use the top several PCs to approximate the full data set for the purpose of (source).

More detail on dimensionality reduction

The Ouyang Lab has a “gentle introduction” section of their materials that goes into greater details on dimensionality reduction including how similar strategies are used in deep learning models. Additionaly, the OSCA book has a chapter on Dimensionality reduction that has useful context.

More context using PCA for single-cell data

To read more on PCA, please refer to the HBC - Theory of PCA content, from which this section is adapted and the original source material for that content, specifically Josh Starmer’s StatQuest video.

For additional detail on , the OSCA chapter on Principal components analysis includes a more descriptive overview.

Run PCA on our dataset

Since PCA is sensitive to scale, we will use the SCT normalized assay (reference). We will name the reduction in an informative way to keep them clear for us in the future. In this case, our data has not yet been integrated, but it has been SCT normalized. So we will name the reduction unintegrated.sct.pca. Note that SCTTransform() returned a set of highly variable genes, and the RunPCA() function will use this subset to determine the PCs and genes associated with those PCs.

# =========================================================================
# PCA and Integration
# =========================================================================

# Build a PCA and add it to the Seurat object
geo_so = RunPCA(geo_so, reduction.name = 'unintegrated.sct.pca')
geo_so

An object of class Seurat
46957 features across 31559 samples within 2 assays
Active assay: SCT (20468 features, 3000 variable features)
 3 layers present: counts, data, scale.data
 1 other assay present: RNA
 1 dimensional reduction calculated: unintegrated.sct.pca

After running the command in the console, we should see that geo_so has a new reduction added to that slot in the Seurat object as shown in the schematic:

Image: Schematic after RunPCA().

We can then visualize the first several PCs using the DimHeatmp() function, which orders both cells and features (genes) according to their PCA scores and allows us to see some general patterns in the data. Here we will specify that the first 24 PCs be included in the figure and that 500 cells are randomly subsetted for the plot. Note - you may need to increase your plot window size to resolve errors regarding figure margins.

# -------------------------------------------------------------------------
# look at first PC alone first
heatmap_1 <- DimHeatmap(geo_so, dims=1, cells=500, balanced=TRUE, fast = FALSE, reduction = 'unintegrated.sct.pca') # doesn't include which PC(s) are included in plot
heatmap_1 +
  labs(title="PC1: top 30 genes x top 500 cells") +
  theme(plot.title = element_text(hjust = 0.5, face = "bold"))

# save to file
ggsave(filename = 'results/figures/qc_pca_heatmap-pc1.png',
       width = 6, height = 4.5, units = 'in')

DimHeatmap for PC1 alone

In the plot of just the first PC, we see the rows are labeled with gene names and PC scores plotted with positive values in yellow, negative values in purple, and zero in black by default, with each column representing a cell. Note that by using fast=FALSE our output is a ggplot object, which allows for customization like adding a more informative, formatted title.

What about the other PCs that have been calculated for these data? We can look at additional dimensions using the same DimHeatmap() function. However, we’ll use the default plotting where fast=TRUE so base plotting will be used instead of ggplot.

#  -------------------------------------------------------
# plot cell by gene heatmaps for larger set of dimensions
DimHeatmap(geo_so, dims=1:18, cells=500, balanced=TRUE, combine = FALSE, reduction = 'unintegrated.sct.pca')

# need to use png() to write to file because this isn't a ggplot
png(filename = 'results/figures/qc_pca_heatmap-pc1-18.png', width = 12, height = 30, units = 'in', res = 300)
  DimHeatmap(geo_so, dims=1:18, cells=500, balanced=TRUE, reduction = 'unintegrated.sct.pca')
dev.off()

DimHeatmap for PC1 alone

png
  2

As we scroll down in this plot, we see less and less structure in our plots and more zero scores (in black) indicating that less variation is being represented by larger PCs overall. However, these patterns can be hard to see so we can also select a few PCs to take a closer look at, again using the default fast=TRUE option to generate a base plot.

# ------------------------------------------------------------
# Plot cell by gene heatmaps for a subset of dimensions
DimHeatmap(geo_so, dims=c(1,5,10,20,30,50), cells=500, balanced=TRUE, reduction = 'unintegrated.sct.pca', nfeatures=20)

png(filename = 'results/figures/qc_pca_heatmap-select.png', width = 12, height = 10, units = 'in', res = 300)
  DimHeatmap(geo_so, dims=c(1,5,10,20,30,50), cells=500, balanced=TRUE, reduction = 'unintegrated.sct.pca', nfeatures=20)
dev.off()

DimHeatmap for select PCs

png
  2

When we look at the selected PCs, we can see a blocky structure for PC10 for about half the cells for a subset of genes. For the later PCs, we are seeing less ‘blocks’ suggesting that the variation explained by these later components might not correspond to the larger cell-type differences that important for clustering.

What genes are contributing the most to each PC?

We can also visualize the loadings for genes contributing to each principal components using Seurat provided functions source.

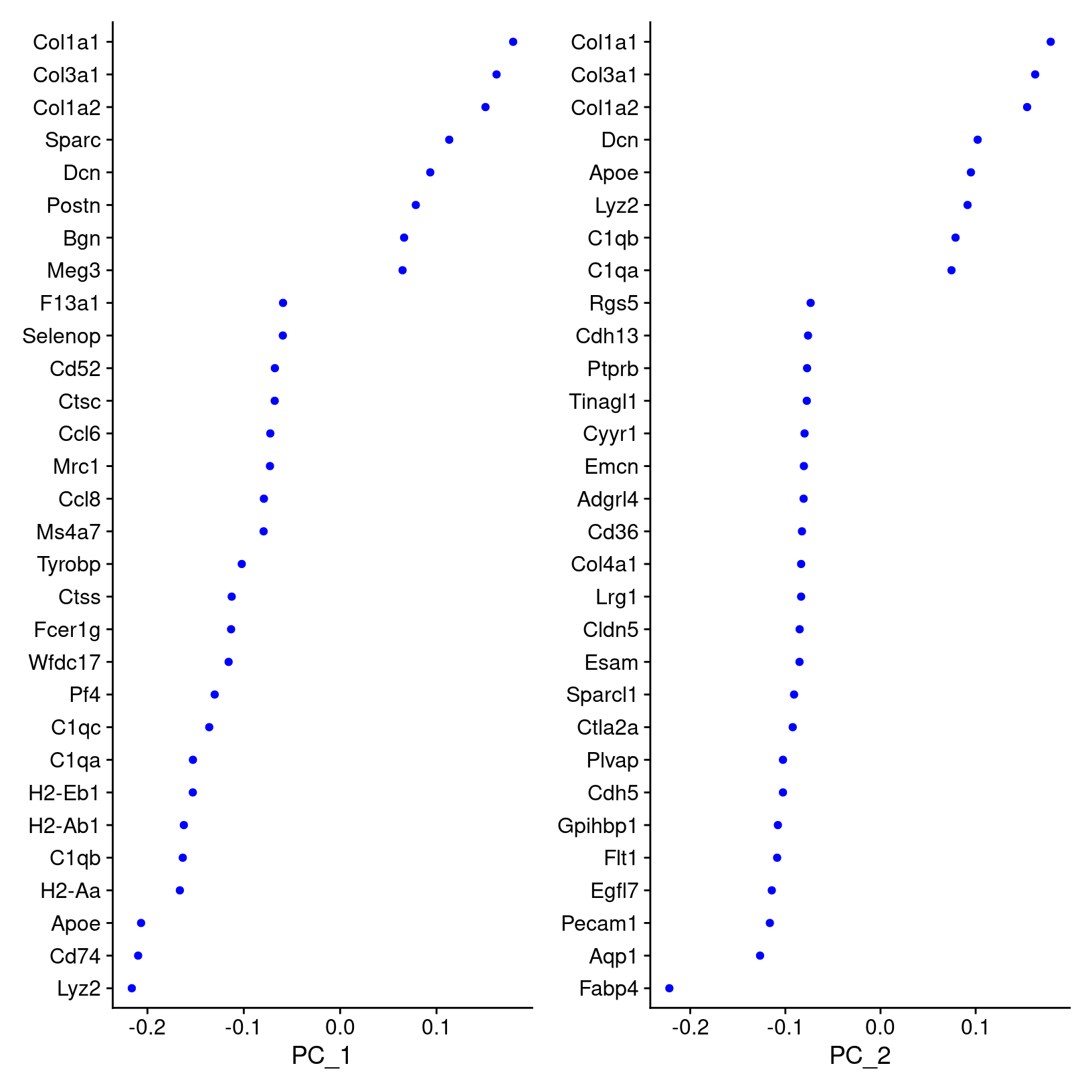

We can highlight genes loaded for dimensions of interest using using VizDimLoadings():

# -------------------------------------------------------------------------
# Visualize gene loadings for PC1 and PC2
VizDimLoadings(geo_so, dims = 1:2, reduction = 'unintegrated.sct.pca')
ggsave(filename = 'results/figures/qc_pca_loadings.png',
       width = 12, height = 6, units = 'in')

How does Seurat use PCA scores?

Per the Ho Lab’s materials - “To overcome the extensive technical noise in any single feature for scRNA-seq data, Seurat clusters cells based on their PCA scores, with each PC essentially representing a ‘metafeature’ that combines information across a correlated feature set. The top principal components therefore represent a robust compression of the dataset.”

Visualizing our PC results

While we’ll discuss selecting the number of PCs to use for clustering in the next section, it be useful to visualize the first 2-3 PCs. Similarly to how we use PCA plots bulk RNA-seq, we can see if there might be batch effects or other technical variation contributing to the components representing the top overall variance by using the DimPlot() function, with each cell plotted along the selected PCs and colored by a selected meta-data column:

?DimPlot # default dims = c(1,2)

# -------------------------------------------------------------------------
# Visualize PCA (PC1 and PC2, unintegrated)
# first label by sample
DimPlot(geo_so, reduction = 'unintegrated.sct.pca', group.by = 'orig.ident')

# then label by day, which looks more useful
DimPlot(geo_so, reduction = 'unintegrated.sct.pca', group.by = 'time')

# save plot labeled by day
ggsave(filename = 'results/figures/qc_pca_plot_unintegrated_sct_day.png',
       width = 7, height = 6, units = 'in')

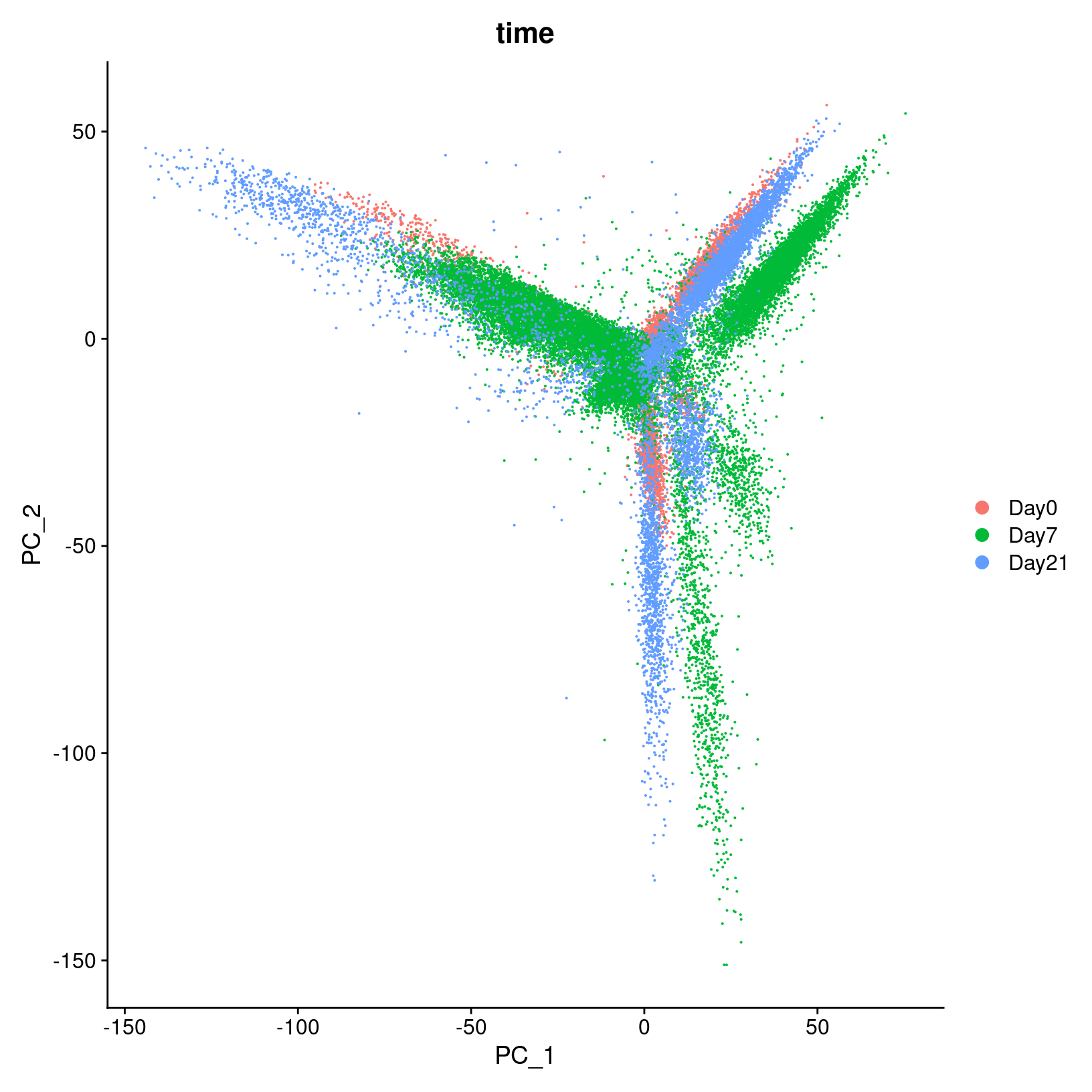

In the first plot with each cell labeled by the original sample name, it looks like there might be some batches but it’s hard to distinguish. From the second by day, we can see that even after normalization there seems to be variation that corresponds more to a batch effect related to the day status than interesting biological variation. This suggests that clustering our data using our selected number of PCs, integration should be performed to mitigate these differences and better align our data.

Integrate Layers

Before proceeding with clustering, we want to integrate our data across all samples. This is a common step for scRNA-seq analyses that include multiple samples and should mitigate the differences between samples we saw in our PCA plot. Currently, each sample is stored as a layer in our geo_so object. Since earlier in the workshop, we used SCTransform() to normalize our data, select variable genes and then have generated a PCA reduction, we’ll use the IntegrateLayers() function.

CCA integration illustration, modified from Stuart and Butler, 2018 -https://doi.org/10.1101/460147

The details of how integration works depends on the method, but for the RPCA approach that we’ll be using here - the process is similar to the canonical correlation analysis (CCA) approach illustration above (source). However, RPCA is more efficient (faster) to run and better preserves distinct cell identities between samples (source). As described in the corresponding Seurat tutorial, each dataset is projected into the others’ PCA space and constrain the anchors

New to Seurat v5 are improvements that make selecting different integration methods much easier. The results of each alternative integration method are stored within the same Seurat object, which makes comparing downstream effects much easier. So, if we wanted to run the RPCAIntegration method, we would run (but we won’t here):

### DO NOT RUN ###
geo_so = IntegrateLayers(
  object = geo_so,
  method = RPCAIntegration,
  orig.reduction = 'unintegrated.sct.pca',
  normalization.method = 'SCT',
  new.reduction = 'integrated.sct.rpca')
### DO NOT RUN ###

Note that the integration is run on the layers, which from our prior steps each correspond to a single sample, in our geo_so Seurat object. For additional information, refer to the Seurat v5 vignette on integrative analysis (link) provides examples of each integration method. Note, that the Seurat vignette code uses the NormalizeData(), ScaleData(), FindVariableFeatures() pipeline, so their IntegrateLayers() call does not include normalization.method = 'SCT', as ours must.

Load a pre-prepared integrated data file:

Because the IntegrateLayers() function takes a while to run, we will load the RPCA integrated geo_so object from a file we have previously generated.

# -------------------------------------------------------------------------
# Load integrated data from prepared file
geo_so = readRDS('inputs/prepared_data/rdata/geo_so_sct_integrated.rds')

Note we have specified the unintegrated reduction unintegrated.sct.pca, which is what IntegrateLayers() operates on, along with the SCT assay. Let’s take a look to see what’s different about the Seurat object:

# -------------------------------------------------------------------------
# Check our updated object that we've read in from file
# Observe that we now have a new reduction, `integrated.sct.rpca`
geo_so

An object of class Seurat
46957 features across 31559 samples within 2 assays
Active assay: SCT (20468 features, 3000 variable features)
 3 layers present: counts, data, scale.data
 1 other assay present: RNA
 2 dimensional reductions calculated: unintegrated.sct.pca, integrated.sct.rpca

And in in our running schematic, we can now see integrated.sct.rpca added to the dimensional reduction slot:

Image: Schematic after IntegrateLayers().

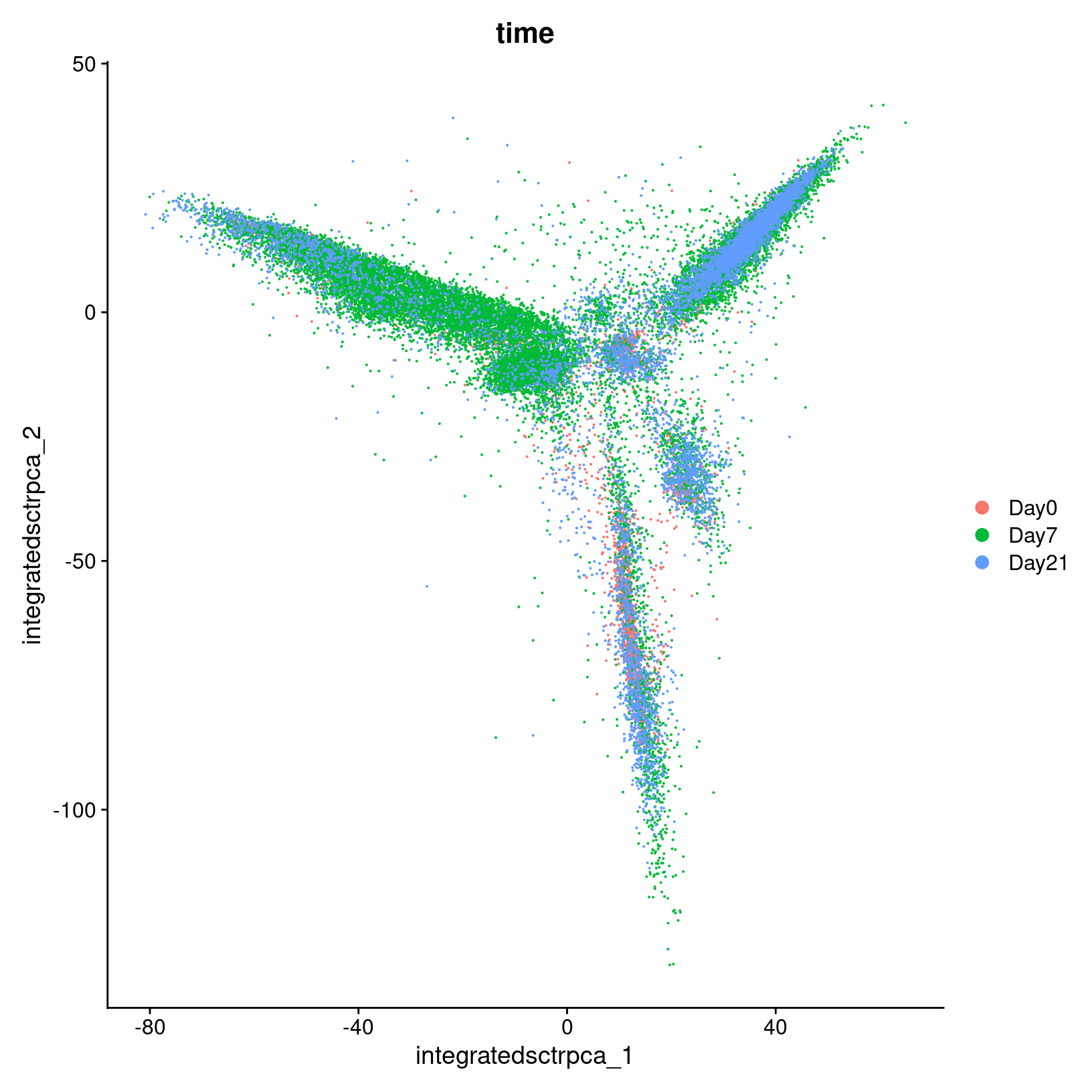

We can also confirm that our integration method has helped to correct the Day effects we saw in the initial PCA plots by generating a similar plot for our integrated data.

# -------------------------------------------------------------------------
# Visualize PCA (PC1 and PC2, integrated)
DimPlot(geo_so, reduction = 'integrated.sct.rpca', group.by = 'time')
ggsave(filename = 'results/figures/qc_pca_plot_integrated_sct_day.png',
       width = 7, height = 6, units = 'in')

Remove plot variables once they are saved

Plots are terrific for visualizing data and we use them liberally in our analysis and the workshop. Interestingly, ggplots save a reference to the source dataset - in our case a rather large Seurat object. That’s ok in most cases, BUT if you save your RStudio environment (or RStudio temporarily suspends your session), RStudio will save a separate copy of the Seurat object for each ggplot object; RStudio’s simplistic approach avoids a lot of complexity, but can drastically increase your load time and memory usage.

Since (a) we have the script to recreate the plots and (b) we explicitly saved them as graphic objects - we can simply remove them from memory.

# -------------------------------------------------------------------------
# Remove plot variables from the environment to avoid excessive memory usage
plots = c("heatmap_1")

# Only remove plots that actually exist in the environment
rm(list=Filter(exists, plots))
gc()

            used   (Mb) gc trigger    (Mb)   max used    (Mb)
Ncells   9908602  529.2   17682058   944.4   17682058   944.4
Vcells 464990128 3547.6 1468333516 11202.5 1468329871 11202.5

Save our progress

Before we move on, let’s save our updated Seurat object to file:

# -------------------------------------------------------------------------
# Save updated seurat object to file
saveRDS(geo_so, file = 'results/rdata/geo_so_sct_integrated.rds')

Other integration methods

After normalizing the data with SCTransform() and performed the dimension reduction with RunPCA(), alternatively we could also use the CCA integration method with:
### DO NOT RUN ###
geo_so = IntegrateLayers(
    object = geo_so,
    method = CCAIntegration,
    orig.reduction = 'unintegrated.sct.pca',
    normalization.method = 'SCT',
    new.reduction = 'integrated.sct.cca')
### DO NOT RUN ###

Summary

In this section, we:

Discussed how PCA is used in scRNA-seq analysis.
Demonstrated some visualizations after computing PCA.
Discussed how to decide how many PCs to use in downstream analysis.
Integrated the data.

Next steps: Clustering and projection

These materials have been adapted and extended from materials listed above. These are open access materials distributed under the terms of the Creative Commons Attribution license (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
